A CLC filter is comprised of a Capacitor-Inductor-Capacitor in a pi π configuration. This creates a low pass filter (LPF).

The first calculator on this page finds values for each of the L and C components based on cutoff frequency values. The second calculator finds the cutoff frequency when the L and C values are specified.

**CLC Filter Design Calculator**

Enter cut-off frequency for the LPF and desired impedance to find the Inductor (L) and capacitor (C) values for this Pi network.

**Background**

**What is a Low-Pass Filter?**

A low-pass filter (LPF) allows frequencies below a specific cut-off frequency to pass through while attenuating higher frequencies.

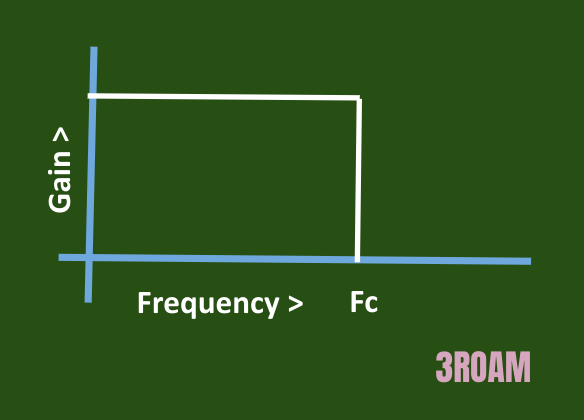

The picture below shows an ideal low pass filter. Signals with frequency less than the cut-off frequency Fc pass through while signals with higher frequencies are blocked or attenuated.

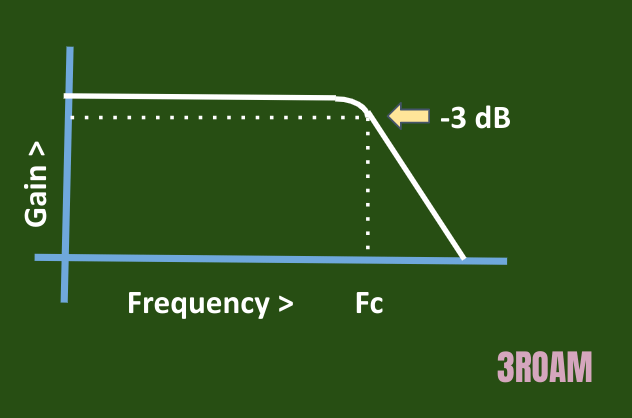

In practice a low pass filter doesn’t have the ideal* ***brick wall*** *characteristic shown in the picture above. Instead it has a cut off frequency which is where the signal is attenuated by 3 dB (also called insertion loss). After that it rolls off as shown in the picture below. Attenuation increases with frequency.

**How to design a CLC Filter**

A LPF consists of one series inductor (L1) and two identical shunt capacitors (C1=C2) as shown in the picture below.

The formula for the calculation is given below. Inductor and Capacitor values are calculated from the characteristic impedance and Fc.

**Formula**

**L = Zo/(π*Fc)**

**C = 1/(Zo*π*Fc)**

**CLC Filter Design Example Calculation**

A low pass filter with **500 MHz** cutoff frequency requires **L = 31.8 nH** and **C = 12.73 pF**.

The filter is symmetric. This means that the attenuation does not change if the input and output are reversed.

💡 It’s important that the filter impedance match that of the source and load (usually 50 ohm and sometimes 75 ohm). In the event that there’s a mismatch, some of the power will be reflected back. Use this tool to calculate the forward and reflected power.

**Applications of Low Pass Filters**

It is commonly used to remove or reduce high-frequency noise or signals. In power supplies a LPF will be used prevent high frequency signals from entering other parts of the circuit or the main supply.

**How to calculate the cutoff frequency of a CLC filter?**

In some situations you might find an application note or chip data sheet that has a CLC filter design. To calculate the cut off frequency for the filter from the capacitor and inductor component values use the calculator below. Simply enter the L and C values and it will provide Fc.

**Formula**

**f _{c}= 1/(π*√(LC))**

**Example Calculation**

For **L = 1 uH** and **C = 1 uF**, the cutoff frequency is **318 kHz**.
